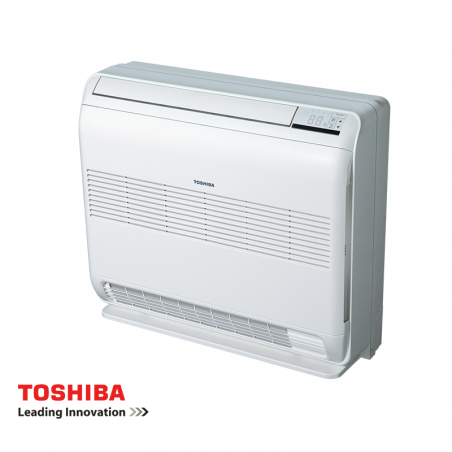

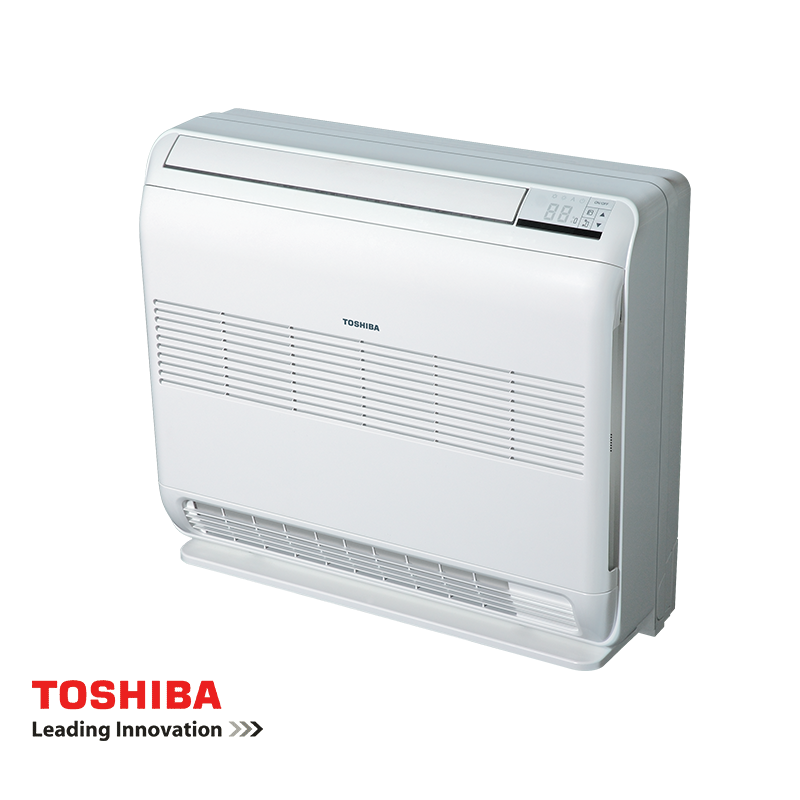

The RAS-B13J2FVG-E1 / RAS-13J2AVSG-E inverter air conditioner from Toshiba’s Bi-flow series features an innovative and compact design, suitable for floor-mounted or low-wall installation. It fits perfectly under a window sill or in attic rooms with low ceilings.
Key Features
- Self-cleaning with Magic Coil
- Cooling capacity (Min./Rated/Max.): 1.05 / 3.5 / 4.1 kW
- Heating capacity (Min./Rated/Max.): 1.0 / 4.2 / 5.0 kW
- Cooling power consumption (Min./Rated/Max.): 0.27 / 0.87 / 1.2 kW
- Heating power consumption (Min./Rated/Max.): 0.22 / 1.27 / 1.55 kW
- Capacity: 13,000 BTU
- SEER (Seasonal Energy Efficiency Ratio): 7
- SCOP (Seasonal Coefficient of Performance for Heating): 4.7
- Energy class for cooling / heating (moderate zone): A++ / A++
- Cooling operating temperature: -15 ~ 46 °C
- Heating operating temperature: -15 ~ 24 °C
- Suitable for rooms up to: 26 sq. m
- Refrigerant: R-32
- Power supply (Phase/Frequency/Voltage): 1~/50/220-240
- Color: White
Indoor unit
- Dimensions: 600 x 700 x 220 H x W x D (mm)
- Weight: 16 kg
- Cooling noise level (High/Normal/Low/Silent): 40 / - / 24 / - dB
- Heating noise level (High/Normal/Low/Silent): 40 / - / 24 / - dB
Outdoor unit
- Compressor: DC Rotary
- Dimensions: 550 x 780 x 290 H x W x D (mm)
- Weight: 30 kg
- Pipe connections - liquid / gas phase: 6.35 / 9.52 mm (1/4" / 3/8")
- Cooling noise level (High/Normal/Low/Silent): 47 / - / - / - dB
- Heating noise level (High/Normal/Low/Silent): 49 / - / - / - dB
