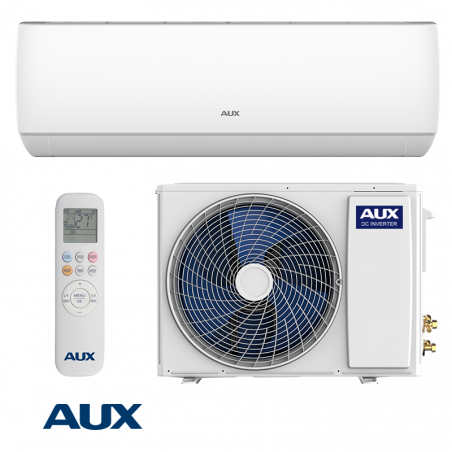

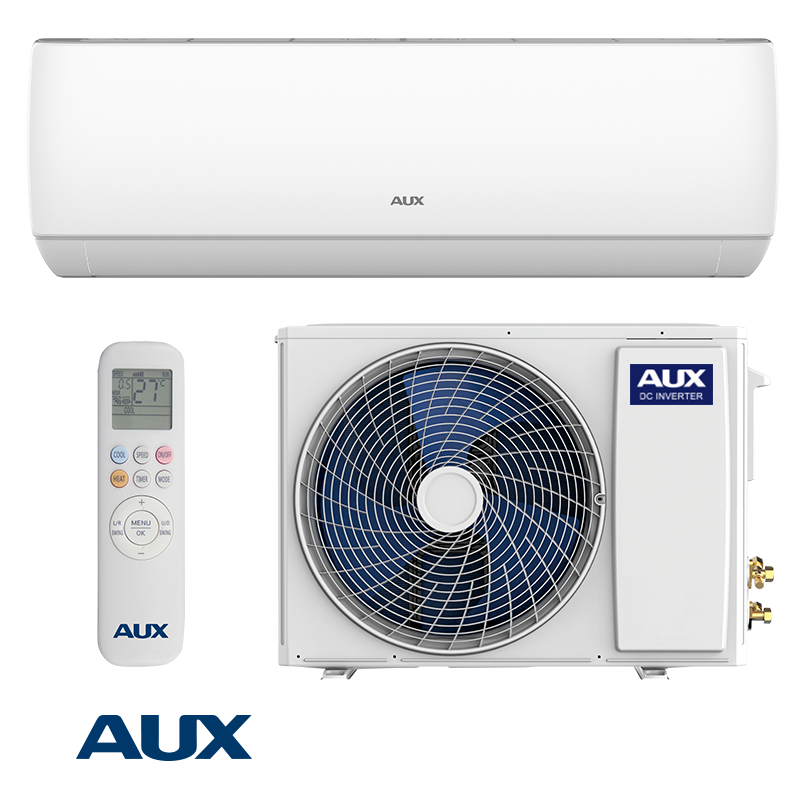

AUX J-Smart ASW-H24F7B4/JOR3DI-B9 Inverter Air Conditioner, 24,000 BTU, 45 m², A++, Wi-Fi, R-32, White

€971.40
€869.14 Save €102.26
Tax included

- Capacity (BTU): 24,000
- Suitable for rooms up to: 45 sq. m
- Wi-Fi module included
- Cooling capacity (Min./Nom./Max.): 1.8 / 7.2 / 7.4 kW
- Heating capacity (Min./Nom./Max.): 1.8 / 7.2 / 8.0 kW
- Cooling power consumption (Min./Rated/Max.): 0.23 / 2.2 / 2.76 kW
- Heating power consumption (Min./Nom./Max.): 0.23 / 2.2 / 2.53 kW
- SEER (Seasonal Energy Efficiency Ratio): 6.9
- SCOP (Seasonal Coefficient of Performance for Heating): 4.09
- Annual energy consumption (Cooling / Heating): 359 / 1950 kWh
- Energy class for cooling / heating (moderate zone): A++ / A+
- Cooling operating temperature: -15 ~ 46 °C
- Heating operating temperature: -20 ~ 30 °C
- Refrigerant: R-32
- Power supply (Phase/Frequency/Voltage): 1~/50/220-240

Indoor unit
- Dimensions: 330 x 1132 x 232 H x W x D (mm)
- Weight: 14 kg
- Cooling noise level (High/Normal/Low/Silent): 50 / 42 / 37 / 32 dB
- Heating noise level (High/Normal/Low/Silent): 50 / 42 / 37 / 32 dB

Outdoor unit
- Compressor: Rotary
- Dimensions: 700 x 900 x 350 H x W x D (mm)
- Weight: 39 kg
- Pipe connections - liquid / gas phase: 6.35 / 15.9 mm (1/4" / 5/8")
- Cooling noise level (High/Normal/Low/Silent): 52 / - / - / - dB
- Heating noise level (High/Normal/Low/Silent): 52 / - / - / - dB

Product customization

Don't forget to save your customization to be able to add to cart
  • 250 char. max
Quantity
1:Уреди за дома

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)


The AUX J-Smart ASW-H24F7B4/JOR3DI-B9 inverter air conditioner provides comfort at an affordable price all year round. The indoor unit’s stylish design blends seamlessly into any interior. This model is suitable for rooms up to 45 square meters.

- Capacity (BTU): 24,000
- Suitable for rooms up to: 45 sq. m
- Wi-Fi module included
- Cooling capacity (Min./Nom./Max.): 1.8 / 7.2 / 7.4 kW
- Heating capacity (Min./Rated/Max.): 1.8 / 7.2 / 8.0 kW
- Cooling power consumption (Min./Rated/Max.): 0.23 / 2.2 / 2.76 kW
- Heating power consumption (Min./Nom./Max.): 0.23 / 2.2 / 2.53 kW
- SEER (Seasonal Energy Efficiency Ratio): 6.9
- SCOP (Seasonal Coefficient of Performance for Heating): 4.09
- Annual energy consumption (Cooling / Heating): 359 / 1950 kWh
- Energy class for cooling / heating (moderate zone): A++ / A+
- Cooling operating temperature: -15 ~ 46 °C
- Heating operating temperature: -20 ~ 30 °C
- Refrigerant: R-32
- Power supply (Phase/Frequency/Voltage): 1~/50/220-240

Indoor unit
- Dimensions: 330 x 1132 x 232 H x W x D (mm)
- Weight: 14 kg
- Cooling noise level (High/Normal/Low/Silent): 50 / 42 / 37 / 32 dB
- Heating noise level (High/Normal/Low/Silent): 50 / 42 / 37 / 32 dB

Outdoor unit
- Compressor: Rotary
- Dimensions: 700 x 900 x 350 H x W x D (mm)
- Weight: 39 kg
- Pipe connections - liquid / gas phase: 6.35 / 15.9 mm (1/4" / 5/8")
- Cooling noise level (High/Normal/Low/Silent): 52 / - / - / - dB
- Heating noise level (High/Normal/Low/Silent): 52 / - / - / - dB
AUX
bit2510015
10 Items

Data sheet

Тип компресор
Rotary
Съдържание пакет
1 x Външно тяло
1 x Вътрешно тяло
1 x Дистанционно
Тип продукт
Стандартен
Капацитет на затопляне
24000 BTU
Препоръчителна зона на покритие
45 м²
Употреба
Домашна
Място за монтиране
Стена
Основен капацитет
24000 BTU
Капацитет охлаждане
24000 BTU
Минимална температура при охлаждане (-°C)
-15
Максимална температура при отопление (+°C)
30
Минимална температура при отопление (°-C)
-20
Максимална температура при охлаждане (°+C)
46
Брой скорости на вентилатора
4
Включен монтажен комплект
Не
Специални функции
Wi-FI
Функции на климатика
Охлаждане
Топлене
Технология Wi-Fi
Да
Тип хладилен агент
R 32
Захранващо напрежение
240 V
Номинален капацитет на охлаждане
7.4 kW
Номинален капацитет на отопление
8 kW
Номинална консумация (охлаждане)
2.76 kW
Номинална консумация (отопление)
2.53 kW
Енергийна ефективност при охлаждане
A++
Енергийна ефективност при отопление
A+
Сезонен коефицент на охлаждане SEER
6.9
Сезонен коефицент на затопляне SCOP
4.09
Цвят вътрешно тяло
Бял
Ниво на шум
50 dB
Дължина Вътрешно устройство
23.2 cm
Ширина Вътрешно устройство
113.2 cm
Височина Вътрешно устройство
33 cm
Тегло Вътрешно устройство
14 Kg
Цвят външно тяло
Бял
Ниво на шум Външно устройство
52 dB
Дължина Външно устройство
35 cm
Ширина Външно устройство
90 cm
Височина Външно устройство
70 cm
Тегло Външно устройство
39 Kg
Гаранция
36 месеца
