- -€98.00

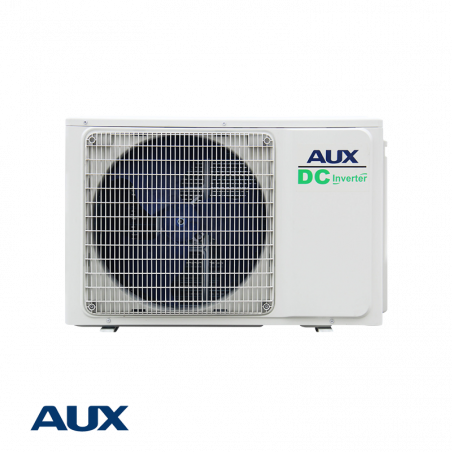

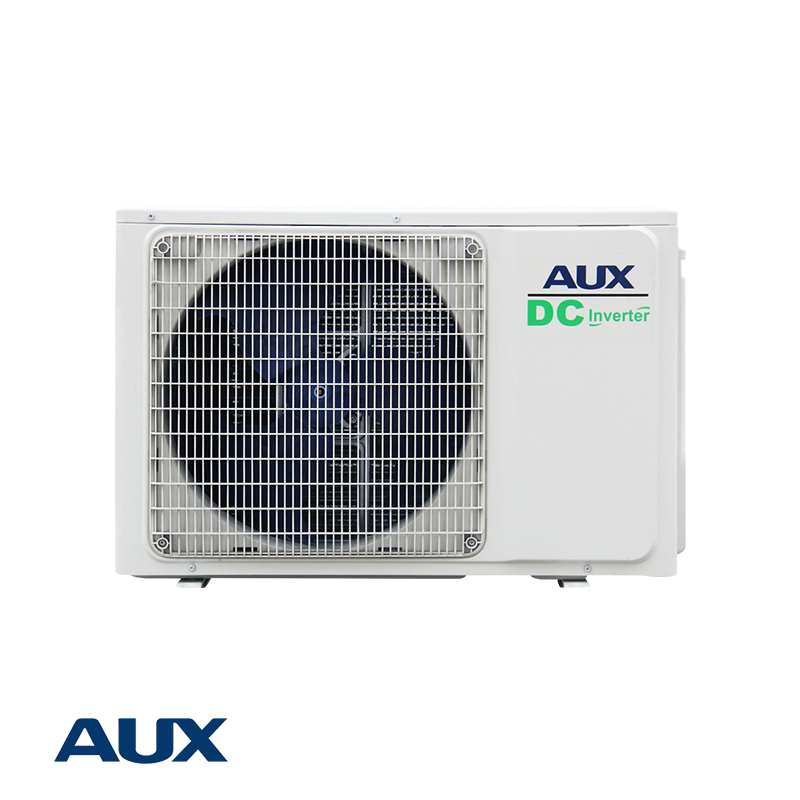

AUX AM2-H14/4DR3 Multi-Split System Outdoor Unit, 14,000 BTU, 30 m², A+++/A++, White
€699.90
€601.90
Save €98.00
Tax included
The AUX AM2-H14/4DR3 multi-split system is an air conditioning system comprising one outdoor unit and two indoor units from the AUX range, which may be of different types. It offers flexible installation options and independent control of each indoor unit.
Key Features
- Capacity: 14,000 BTU
- Suitable for rooms up to: 30 sq. m
- Cooling capacity (Min./Rated/Max.): 1.8 / 4.1 / 4.51 kW
- Heating capacity (Min./Rated/Max.): 2.05 / 4.8 / 5.28 kW
- Cooling power consumption (Min./Rated/Max.): 0.198 / 1.24 / 2.1 kW
- Heating power consumption (Min./Nom./Max.): 0.198 / 1.15 / 2.1 kW
- EER (Energy Efficiency Ratio): 3.31
- SEER (Seasonal Energy Efficiency Ratio): 6.16
- COP (heating coefficient of performance): 4.17
- SCOP (Seasonal Coefficient of Performance for Heating): 4.06
- Energy class for cooling / heating (moderate zone): A++ / A+
- Cooling operating temperature: -15 ~ 52 °C
- Heating operating temperature: -15 ~ 24 °C
- Maximum number of indoor units: 2
- Refrigerant: R-32
- Power supply (Phase/Frequency/Voltage): 1~/50/220-240
Outdoor unit
- Compressor: Rotary
- Dimensions: 555 x 785 x 300 H x W x D (mm)
- Weight: 30 kg
- Pipe connections - liquid / gas phase: 6.35 / 9.52 mm (1/4" / 3/8")
- Cooling noise level (High/Normal/Low/Silent): 54 / - / - / - dB
- Heating noise level (High/Normal/Low/Silent): 54 / - / - / - dB
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
The AUX AM2-H14/4DR3 multi-split system is an air conditioning system comprising one outdoor unit and two indoor units from AUX, which may be of different types. It offers flexible installation options and independent control of each indoor unit.
Key Features
- Capacity: 14,000 BTU
- Suitable for rooms up to: 30 sq. m
- Cooling capacity (Min./Rated/Max.): 1.8 / 4.1 / 4.51 kW
- Heating capacity (Min./Rated/Max.): 2.05 / 4.8 / 5.28 kW
- Cooling power consumption (Min./Rated/Max.): 0.198 / 1.24 / 2.1 kW
- Heating power consumption (Min./Nom./Max.): 0.198 / 1.15 / 2.1 kW
- EER (Energy Efficiency Ratio): 3.31
- SEER (Seasonal Energy Efficiency Ratio): 6.16
- COP (heating coefficient of performance): 4.17
- SCOP (Seasonal Coefficient of Performance for Heating): 4.06
- Energy class for cooling / heating (moderate zone): A++ / A+
- Cooling operating temperature: -15 ~ 52 °C
- Heating operating temperature: -15 ~ 24 °C
- Maximum number of indoor units: 2
- Refrigerant: R-32
- Power supply (Phase/Frequency/Voltage): 1~/50/220-240
Outdoor unit
- Compressor: Rotary
- Dimensions: 555 x 785 x 300 H x W x D (mm)
- Weight: 30 kg
- Pipe connections - liquid / gas phase: 6.35 / 9.52 mm (1/4" / 3/8")
- Cooling noise level (High/Normal/Low/Silent): 54 / - / - / - dB
- Heating noise level (High/Normal/Low/Silent): 54 / - / - / - dB
bit2550075
10 Items
Data sheet
- Съдържание пакет
- 1 x Външно тяло
- Тип продукт
- Мултисплит
- Препоръчителна зона на покритие
- 30 м²
- Място за монтиране
- Под
Стена - Основен капацитет
- 14000 BTU
- Минимална температура при охлаждане (-°C)
- -15
- Максимална температура при отопление (+°C)
- 24
- Минимална температура при отопление (°-C)
- -15
- Максимална температура при охлаждане (°+C)
- 52
- Включен монтажен комплект
- Не
- Технология Wi-Fi
- N/A
- Тип хладилен агент
- R 32
- Номинална консумация (охлаждане)
- 1.24
- Номинална консумация (отопление)
- 1.15
- Енергийна ефективност при охлаждане
- A++
- Енергийна ефективност при отопление
- A+
- Сезонен коефицент на охлаждане SEER
- 6.16
- Сезонен коефицент на затопляне SCOP
- 4.06
- Коефицент на затопляне COP
- 4.17
- Ниво на шум
- 54 dB
- Ниво на шум Външно устройство
- 54 dB
- Дължина Външно устройство
- 30 cm
- Ширина Външно устройство
- 78.5 cm
- Височина Външно устройство
- 55.5 cm
- Тегло Външно устройство
- 30 Kg
- Гаранция
- 36 месеца
