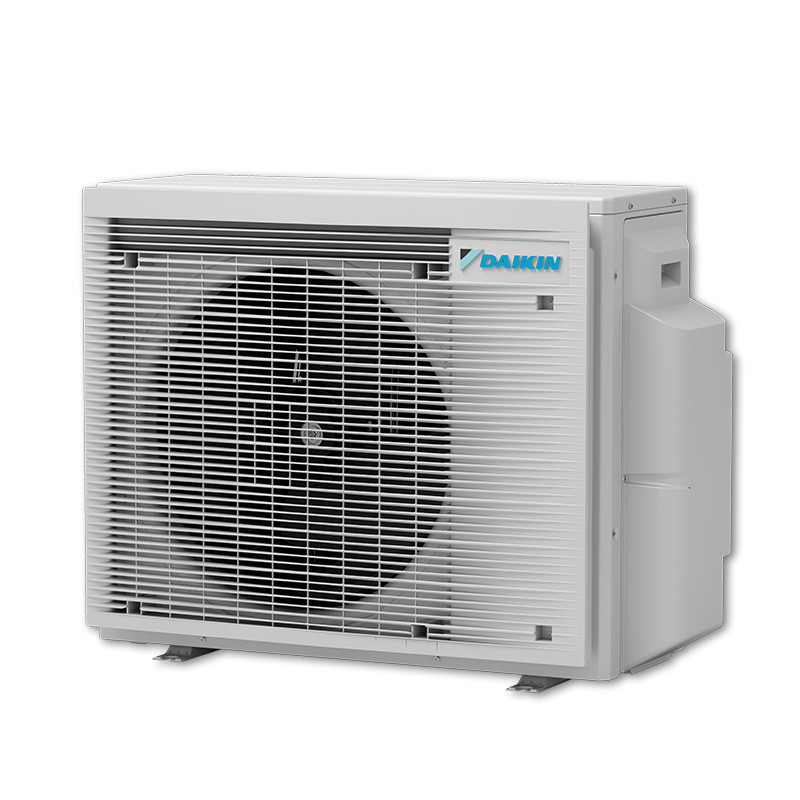

Daikin 4MXM68A9 Multi-Split System Outdoor Unit, 23,000 BTU, 53 m², A+++, R-32, Up to 4 Indoor Units, White
search
  • Daikin 4MXM68A9 Multi-Split System Outdoor Unit, 23,000 BTU, 53 m², A+++, R-32, Up to 4 Indoor Units, White
  • Daikin 4MXM68A9 Multi-Split System Outdoor Unit, 23,000 BTU, 53 m², A+++, R-32, Up to 4 Indoor Units, White
video-thumb

Daikin 4MXM68A9 Multi-Split System Outdoor Unit, 23,000 BTU, 53 m², A+++, R-32, Up to 4 Indoor Units, White

€2,976.74
Tax included

- Capacity (BTU): 23,000
- Suitable for rooms up to: 53 sq. m
- Maximum number of indoor units: 4
- Cooling capacity (Min./Nom./Max.): - / 6.8 / - kW
- Heating capacity (Min./Nom./Max.): - / 8.6 / - kW
- SEER (Seasonal Energy Efficiency Ratio): 8.55
- SCOP (Seasonal Coefficient of Performance for Heating): 4.8
- Annual energy consumption (Cooling / Heating): 144 / 1354 kWh
- Energy class for cooling / heating (moderate zone): A+++ / A++
- Cooling operating temperature: -10 ~ 46 °C
- Heating operating temperature: -15 ~ 18 °C
- Refrigerant: R-32
- Power supply (Phase/Frequency/Voltage): 1~/50/220-240

Outdoor unit
- Compressor: Daikin
- Dimensions: 734 x 958 x 340 H x W x D (mm)
- Weight: 63 kg
- Pipe connections - liquid / gas phase: 6.35 / 9.52 mm (1/4" / 3/8")
- Cooling noise level (High/Normal/Low/Silent): - / 48 / - / - dB
- Heating noise level (High/Normal/Low/Silent): - / 48 / - / - dB

Product customization

Don't forget to save your customization to be able to add to cart
  • 250 char. max
Quantity
1:Уреди за дома

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)


The Daikin 4MXM68A9 multi-split system is an air conditioning system that operates with one outdoor unit and up to four Daikin indoor units, which can be of different types. It offers flexible installation options and independent control of each indoor unit.

- Capacity (BTU): 23,000
- Suitable for rooms up to: 53 sq. m
- Maximum number of indoor units: 4
- Cooling capacity (Min./Nom./Max.): - / 6.8 / - kW
- Heating capacity (Min./Nom./Max.): - / 8.6 / - kW
- SEER (Seasonal Energy Efficiency Ratio): 8.55
- SCOP (Seasonal Coefficient of Performance for Heating): 4.8
- Annual energy consumption (Cooling / Heating): 144 / 1354 kWh
- Energy class for cooling / heating (moderate zone): A+++ / A++
- Cooling operating temperature: -10 ~ 46 °C
- Heating operating temperature: -15 ~ 18 °C
- Refrigerant: R-32
- Power supply (Phase/Frequency/Voltage): 1~/50/220-240

Outdoor unit
- Compressor: Daikin
- Dimensions: 734 x 958 x 340 H x W x D (mm)
- Weight: 63 kg
- Pipe connections - liquid / gas phase: 6.35 / 9.52 mm (1/4" / 3/8")
- Cooling noise level (High/Normal/Low/Silent): - / 48 / - / - dB
- Heating noise level (High/Normal/Low/Silent): - / 48 / - / - dB
Daikin
bit2550034_1
10 Items

Data sheet

Тип компресор
Инверторен
Съдържание пакет
1 x Външно тяло
Тип продукт
Мултисплит
Капацитет на затопляне
23000 BTU
Препоръчителна зона на покритие
53 м²
Употреба
Домашна
Място за монтиране
Стена
Капацитет охлаждане
23000 BTU
Минимална температура при охлаждане (-°C)
-10
Максимална температура при отопление (+°C)
18
Минимална температура при отопление (°-C)
-15
Максимална температура при охлаждане (°+C)
46
Брой скорости на вентилатора
4
Инвертор
Да
Включен монтажен комплект
Не
Функции на климатика
Охлаждане
Топлене
Технология Wi-Fi
Не
Тип хладилен агент
R 32
Захранващо напрежение
240 V
Номинален капацитет на охлаждане
6.8 kW
Номинален капацитет на отопление
8.6 kW
Енергийна ефективност при охлаждане
A+++
Енергийна ефективност при отопление
A++
Сезонен коефицент на охлаждане SEER
8.55
Сезонен коефицент на затопляне SCOP
4.8
Ниво на шум
48 dB
Цвят външно тяло
Бял
Ниво на шум Външно устройство
48 dB
Дължина Външно устройство
34 cm
Ширина Външно устройство
95.8 cm
Височина Външно устройство
73.4 cm
Тегло Външно устройство
63 Kg
Гаранция
36 месеца
