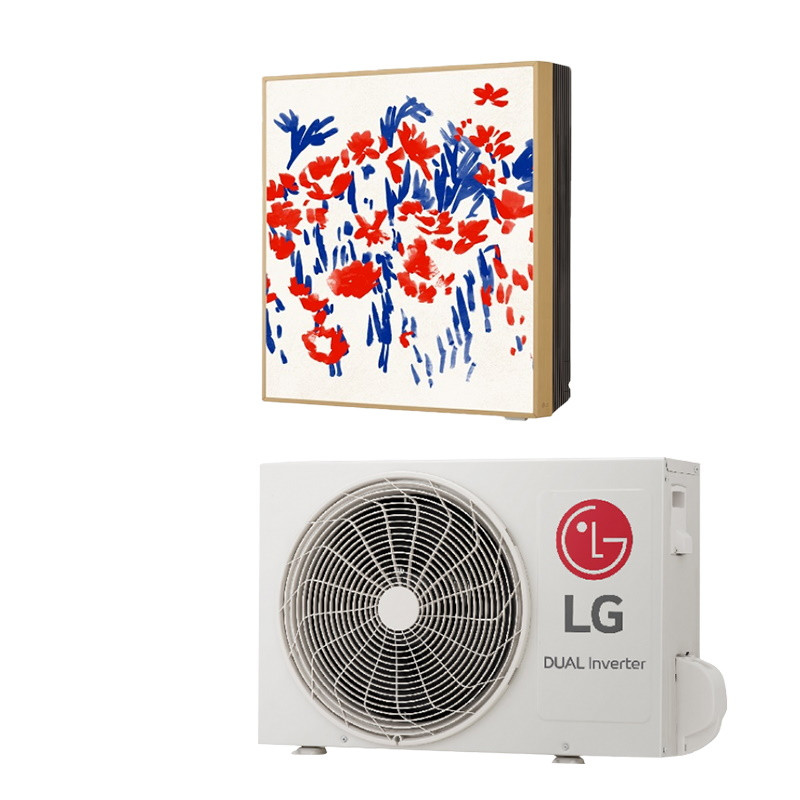

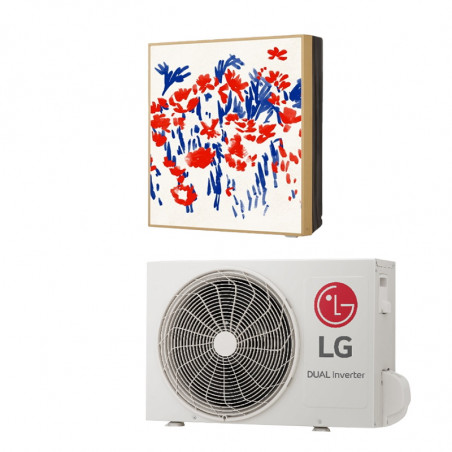

An inverter air conditioner with a capacity of 12,000 BTU, suitable for rooms up to 26 square meters. It features a built-in Wi-Fi module for convenient control, high seasonal efficiency, and an energy-saving mode. It operates reliably at temperatures ranging from -15°C to +48°C and provides comfortable cooling and heating all year round. Its compact design makes it ideal for concealed installation in a suspended ceiling, preserving the aesthetics of the interior.
- Capacity (BTU): 12,000
- Suitable for rooms up to: 26 sq. m
- Wi-Fi module included
- Cooling capacity (Min./Nom./Max.): 0.89 / 3.5 / 4.04 kW
- Heating capacity (Min./Rated/Max.): 0.89 / 4.0 / 4.7 kW
- Cooling power consumption (Min./Rated/Max.): - / 1.02 / - kW
- Heating power consumption (Min./Nom./Max.): - / 1.078 / - kW
- EER (Energy Efficiency Ratio): 3.43
- SEER (Seasonal Energy Efficiency Ratio): 6.9
- COP (heating coefficient of performance): 3.71
- SCOP (Seasonal Coefficient of Performance for Heating): 4.3
- Annual energy consumption (Cooling / Heating): 177 / 879 kWh
- Energy class for cooling / heating (temperate zone): A++ / A+
- Cooling operating temperature: -15 ~ 48 °C
- Heating operating temperature: -15 ~ 24 °C
- Refrigerant: R-32
- Power supply (Phase/Frequency/Voltage): 1~/50/220-240
Indoor unit
- Dimensions: 652 x 652 x 158 H x W x D (mm)
- Weight: 20 kg
- Cooling noise level (High/Normal/Low/Silent): 42 / 36 / 28 / 20 dB
- Heating noise level (High/Normal/Low/Silent): 42 / 36 / 28 / - dB
Outdoor unit
- Dimensions: 545 x 770 x 288 H x W x D (mm)
- Weight: 33.4 kg
- Pipe connections - liquid / gas phase: 6.35 / 9.52 mm (1/4" / 3/8")
- Cooling noise level (High/Normal/Low/Silent): 50 / - / - / - dB
- Heating noise level (High/Normal/Low/Silent): 53 / - / - / - dB
