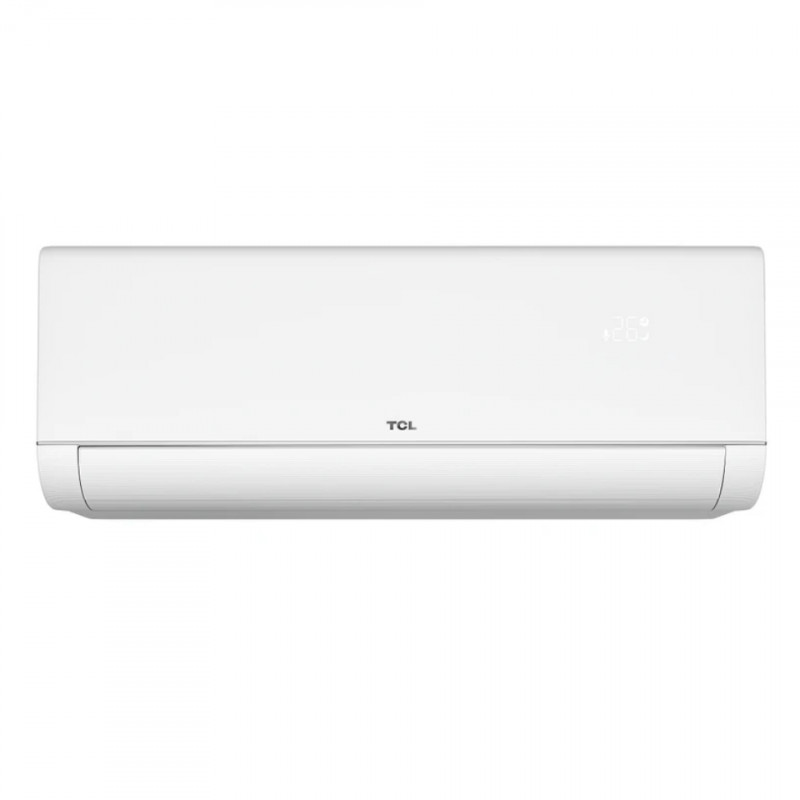

TCL VoxIN TAC-09CHSD/UG11V3A Inverter Air Conditioner, 9000 BTU, 25 m², A+++, Wi-Fi, iFeel, AI ECO, Voice Control, White

- Capacity: 9,000 BTU
- Suitable for rooms: 15–25 m²
- Control: Remote control
- Rated cooling capacity: 2,680 W (940–3,810 W)
- Rated heating capacity: 3,350 W (940–4,230 W)
- Design cooling load (Pdesignc): 2,600 W
- SEER: 8.5
- Energy efficiency class (cooling): A+++
- EER: 3.94
- COP: 3.90
- Design load for heating – average climate (Pdesignh): 2,400 W
- SCOP – moderate climate: 4.6
- Energy class for heating - moderate climate: A++
- Heating capacity at -10°C: 2200 W
- Additional heating capacity at -10°C: 200 W
- Design load for heating – warm climate: 2600 W
- SCOP - warm climate: 5.3
- Energy class for heating - warm climate: A+++
- Heating capacity at 2°C: 2600 W
- Additional heating capacity at 2°C: 0 W
- Design load for heating - cold climate: 2,900 W
- SCOP - cold climate: 3.7
- Energy class for heating - cold climate: A
- Heating capacity at -22°C: 2,200 W
- Additional heating capacity at -22°C: 700 W
- Annual energy consumption for cooling: 108 kWh
- Annual energy consumption for heating – moderate climate: 731 kWh
- Annual energy consumption for heating – warm climate: 687 kWh
- Annual energy consumption for heating – cold climate: 1,646 kWh
- Dehumidification: 1.2 L/h
- Sound power level of the indoor unit (S/H/M/L/Mute): 54/50/44/35/29 dB(A)
- Sound power level of the outdoor unit: 62 dB(A)
- Sound pressure level of the indoor unit (S/H/M/L/Mute): 44/41/34/25/19 dB(A)
- Sound pressure level of the outdoor unit: 52 dB(A)
- Supply voltage: 220–240 V~/50 Hz/1P
- Operating voltage range: 165–265 V
- Operating current in cooling mode: 3.1 A (1.2–7.5 A)
- Operating current in heating mode: 3.8 A (1.2–8.0 A)
- Power consumption during cooling: 679 W (240–1360 W)
- Power consumption during heating: 857 W (240–1,656 W)
- Refrigerant: R32
- Refrigerant charge: 0.57 kg
- GWP: 675
- CO₂ equivalent: 0.385 metric tons
- Compressor type: Rotary
- Compressor model: KSN89D28UDZW31
- Compressor oil: ESTER OIL VG74
- Compressor oil quantity: 280 ml
- Indoor unit airflow (cooling/heating): 680/700 m³/h
- Indoor unit fan type: DC
- Outdoor unit fan type: DC
- Outdoor unit airflow: 2000 m³/h
- Connection cable: 4 × 0.75 mm²
- Power cable: 3 × 1.5 mm²
- Expansion device: Electronic expansion valve
- Gas line: 3/8"
- Liquid line: 1/4"
- Standard pipe run length: 5 m
- Additional charge: 15 g/m
- Maximum pipe run length: 25 m
- Maximum elevation difference: 10 m
- Operating temperature range: 16–31°C

Room temperature:
- Cooling: 17–32°C
- Heating: 0–30°C

Outdoor temperature:
- Cooling: -15 to 53°C
- Heating: -25 to 30°C

Dimensions:
- Indoor unit dimensions (W x H x D): 80.8 x 30.5 x 20.9 cm
- Outdoor unit dimensions (W x H x D): 78.7 x 49.8 x 29 cm
- Indoor unit weight: 9.7 kg
- Weight of the outdoor unit: 22.0 kg
- Indoor unit packaging dimensions (W x H x D): 88 x 37.5 x 27.5 cm
- Outdoor unit packaging dimensions (WxHxD): 81.8 x 52 x 32.5 cm
- Gross weight of the indoor unit: 12.2 kg
- Gross weight of the outdoor unit: 24 kg
- Loading capacity of a 40'HQ container: 275 units
- Maximum stacking capacity for indoor units: 8 units
- Maximum stacking capacity for outdoor units: 5 units

Features:
- AI Energy Saving (AI ECO): Automatic consumption optimization
- Energy consumption monitoring: Tracks energy usage
- Wi-Fi Control: Control via app
- Voice control: Control via voice commands
- Offline voice control: No internet connection required
- I FEEL: Temperature sensor in the remote control
- 4D airflow: Vertical and horizontal airflow direction
- Gentle Cool: Softer airflow
- Comfort Cooling: Reduces direct airflow
- Quick Cooling: Faster reaching of the set temperature
- Quick Heating: Faster room heating
- 7 fan speeds
- Turbo Mode: Maximum performance
- Auto mode: Automatic mode selection
- Cooling mode
- Heating mode
- Fan mode: Circulation without cooling
- Dehumidification mode: Reduces humidity
- Night mode: Quieter operation at night
- Timer: Schedule on and off times
- Quiet mode: Reduced noise level
- Wide-range louvers: Wider airflow coverage
- Smart airflow: Automatic airflow direction
- Cold Air Prevention: Prevents cold air from blowing out during heating
- Smart Defrost: Automatic defrosting of the outdoor unit
- Emergency control button: Operation without a remote control
- Wide power supply voltage range: More stable operation during voltage fluctuations
- Child lock: Locks settings
- Refrigerant leak detection: Automatic alert
- Automatic restart: Resumes operation after a power outage
- Self-diagnosis: Fault detection
- Louver position memory: Saves the last setting
- Dual-side drainage: Drains from both sides
- Easy-to-clean filter
- Filter cleaning reminder
- Hidden display: Display visible during operation
- Backlit remote control
- Switch between °C and °F
- Self-cleaning of the indoor and outdoor units
- Deep cleaning: Additional hygiene cycle
- Health care: Features for cleaner air
- Bipolar ion generator: Air ionization
- UVC sterilization: UV-C disinfection
- Sterilization Pro: Advanced sterilization mode
- Gold Fin coating: Corrosion protection
