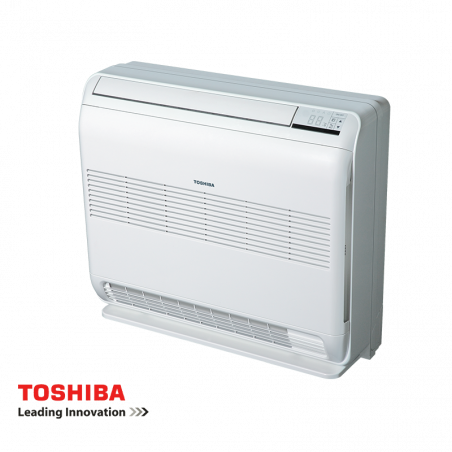

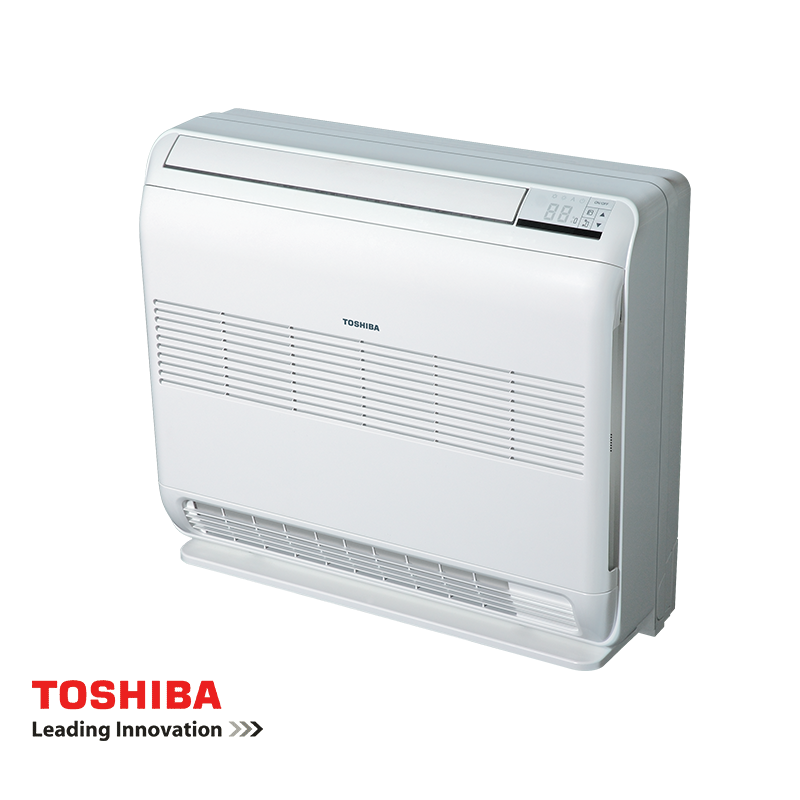

The RAS-B18J2FVG-E1 / RAS-18J2AVSG-E inverter air conditioner from Toshiba’s Bi-flow series features an innovative and compact design, suitable for floor-mounted or low-wall installation. It fits perfectly under a window sill or in attic rooms with low ceilings.
Key Features
- Self-cleaning with Magic Coil
- Cooling capacity (Min./Rated/Max.): 1.2 / 5.0 / 5.6 kW
- Heating capacity (Min./Rated/Max): 1.3 / 6.0 / 6.3 kW
- Cooling power consumption (Min./Rated/Max.): 0.34 / 1.68 / 2.0 kW
- Heating power consumption (Min./Rated/Max.): 0.31 / 2.05 / 2.2 kW
- Capacity: 18,000 BTU
- EER (Energy Efficiency Ratio): 2.98
- SEER (Seasonal Energy Efficiency Ratio): 6.8
- COP (Heating Coefficient of Performance): 2.93
- SCOP (Seasonal Coefficient of Performance - Heating): 4.6
- Annual energy consumption (Cooling / Heating): 307 / 1,474 kWh
- Energy class for cooling / heating (temperate zone): A++ / A++
- Cooling operating temperature: -15 ~ 46 °C
- Heating operating temperature: -15 ~ 24 °C
- Suitable for rooms up to: 36 sq. m
- Refrigerant: R-32
- Power supply (Phase/Frequency/Voltage): 1~/50/220-240
- Color: White
Indoor unit
- Dimensions: 600 x 700 x 220 H x W x D (mm)
- Weight: 16 kg
- Cooling noise level (High/Normal/Low/Silent): 46 / - / 31 / - dB
- Heating noise level (High/Normal/Low/Silent): 47 / - / 31 / - dB
Outdoor unit
- Compressor: Twin-Rotary
- Dimensions: 550 x 780 x 290 H x W x D (mm)
- Weight: 34 kg
- Pipe connections - liquid / gas phase: 6.35 / 12.7 mm (1/4" / 1/2")
- Cooling noise level (High/Normal/Low/Silent): 49 / - / - / - dB
- Heating noise level (High/Normal/Low/Silent): 51 / - / - / - dB
