AUX AM3-H21/4DR3 Multi-Split System Outdoor Unit, 21,000 BTU, A++/A+, R-32, White
€929.90
€797.90
Save €132.00
Tax included

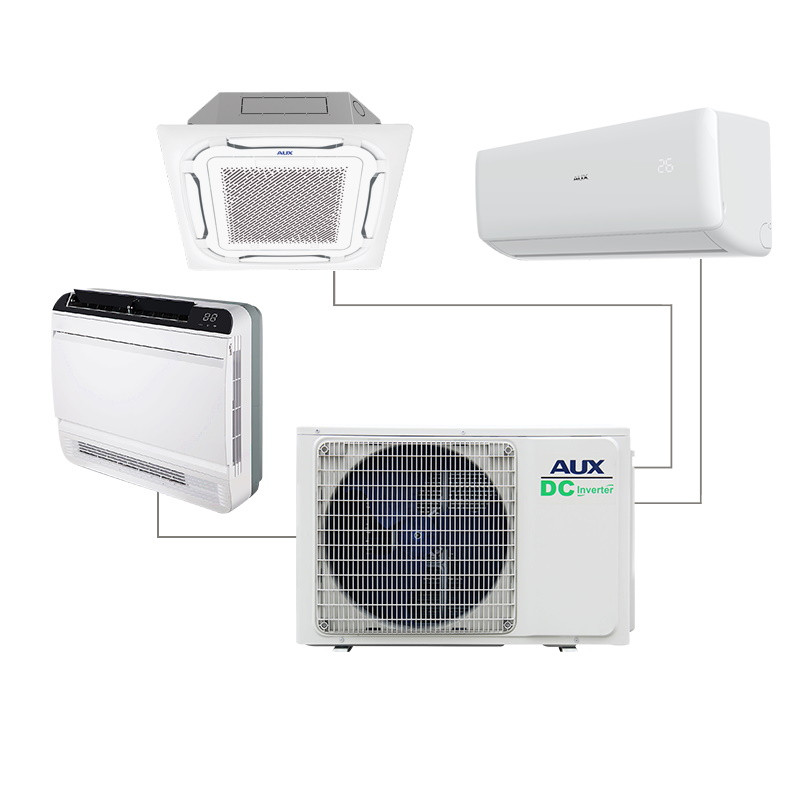

The AUX AM3-H21/4DR3 multi-split system is an air conditioning system comprising one outdoor unit and three AUX indoor units, which may be of different types. It offers flexible installation options and independent control of each indoor unit.
Key Features
- Capacity: 21,000 BTU
- Suitable for rooms up to 55 m²
- Cooling capacity (Min./Rated/Max.): 2.2 / 6.2 / 6.71 kW
- Heating capacity (Min./Rated/Max.): 2.39 / 6.6 / 7.26 kW
- Cooling power consumption (Min./Rated/Max.): 0.35 / 1.92 / 2.8 kW
- Heating power consumption (Min./Nom./Max.): 0.35 / 1.78 / 2.8 kW
- EER (Energy Efficiency Ratio): 3.23
- SEER (Seasonal Energy Efficiency Ratio): 6.57
- COP (heating coefficient of performance): 3.71
- SCOP (Seasonal Coefficient of Performance for Heating): 4.39
- Energy class for cooling / heating (moderate zone): A++ / A+
- Cooling operating temperature: -15 ~ 52 °C
- Heating operating temperature: -15 ~ 24 °C
- Maximum number of indoor units: 3
- Refrigerant: R-32
- Power supply (Phase/Frequency/Voltage): 1~/50/220-240
Outdoor unit
- Compressor: Twin Rotary
- Dimensions: 700 x 900 x 350 H x W x D (mm)
- Weight: 41.5 kg
- Pipe connections - liquid / gas phase: 6.35 / 9.52 mm (1/4" / 3/8")
- Cooling noise level (High/Normal/Low/Silent): 56 / - / - / - dB
- Heating noise level (High/Normal/Low/Silent): 56 / - / - / - dB
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
The AUX AM3-H21/4DR3 multi-split system is an air conditioning system comprising one outdoor unit and three AUX indoor units, which may be of different types. It offers flexible installation options and independent control of each indoor unit.
Key Features
- Capacity: 21,000 BTU
- Suitable for rooms up to 55 m²
- Cooling capacity (Min./Rated/Max.): 2.2 / 6.2 / 6.71 kW
- Heating capacity (Min./Rated/Max.): 2.39 / 6.6 / 7.26 kW
- Cooling power consumption (Min./Rated/Max.): 0.35 / 1.92 / 2.8 kW
- Heating power consumption (Min./Nom./Max.): 0.35 / 1.78 / 2.8 kW
- EER (Energy Efficiency Ratio): 3.23
- SEER (Seasonal Energy Efficiency Ratio): 6.57
- COP (heating coefficient of performance): 3.71
- SCOP (Seasonal Coefficient of Performance for Heating): 4.39
- Energy class for cooling / heating (moderate zone): A++ / A+
- Cooling operating temperature: -15 ~ 52 °C
- Heating operating temperature: -15 ~ 24 °C
- Maximum number of indoor units: 3
- Refrigerant: R-32
- Power supply (Phase/Frequency/Voltage): 1~/50/220-240
Outdoor unit
- Compressor: Twin Rotary
- Dimensions: 700 x 900 x 350 H x W x D (mm)
- Weight: 41.5 kg
- Pipe connections - liquid / gas phase: 6.35 / 9.52 mm (1/4" / 3/8")
- Cooling noise level (High/Normal/Low/Silent): 56 / - / - / - dB
- Heating noise level (High/Normal/Low/Silent): 56 / - / - / - dB
bit2550037
10 Items
Data sheet
- Съдържание пакет
- 1 x Външно тяло
1 x Вътрешно тяло - Тип продукт
- Мултисплит
- Капацитет на затопляне
- 21000 BTU
- Препоръчителна зона на покритие
- 55 м²
- Употреба
- Домашна
- Място за монтиране
- Стена
- Основен капацитет
- 21000 BTU
- Капацитет охлаждане
- 21000 BTU
- Минимална температура при отопление (°-C)
- -15
- Максимална температура при охлаждане (°+C)
- 52
- Брой скорости на вентилатора
- 4
- Инвертор
- Да
- Включен монтажен комплект
- Не
- Функции на климатика
- Охлаждане
Топлене - Технология Wi-Fi
- Не
- Тип хладилен агент
- R 32
- Захранващо напрежение
- 240 V
- Номинален капацитет на охлаждане
- 6.71 kW
- Номинален капацитет на отопление
- 7.26 kW
- Номинална консумация (охлаждане)
- 2.8 kW
- Номинална консумация (отопление)
- 2.8 kW
- Енергийна ефективност при охлаждане
- A++
- Енергийна ефективност при отопление
- A+
- Сезонен коефицент на охлаждане SEER
- 6.57
- Сезонен коефицент на затопляне SCOP
- 4.39
- Коефицент на охлаждане EER
- 3.23
- Коефицент на затопляне COP
- 3.71
- Цвят вътрешно тяло
- Бял
- Ниво на шум
- 56 dB
- Цвят външно тяло
- Бял
- Ниво на шум Външно устройство
- 56 dB
- Дължина Външно устройство
- 35 cm
- Ширина Външно устройство
- 90 cm
- Височина Външно устройство
- 70 cm
- Тегло Външно устройство
- 41.5 Kg
- Гаранция
- 36 месеца
