- -€256.00

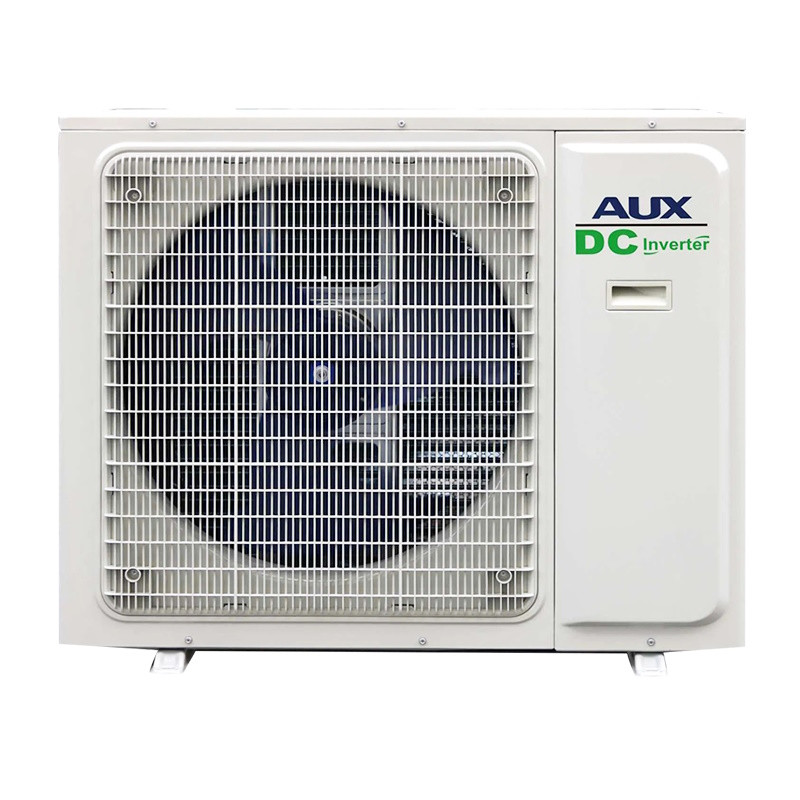

AUX AM4-H36/4DR3 Multi-Split System Outdoor Unit, 36,000 BTU, 60 m², A++/A+, R-32, White
€1,629.90
€1,373.90
Save €256.00
Tax included
The AUX AM4-H36/4DR3 multi-split system is an air conditioning system comprising one outdoor unit and four AUX indoor units, which may be of different types. It offers flexible installation options and independent control of each indoor unit.
Key Features
- Capacity: 36,000 BTU
- Suitable for rooms up to: 60 sq. m
- Cooling capacity (Min./Nom./Max.): 2.5 / 10.5 / 11.0 kW
- Heating capacity (Min./Rated/Max.): 2.67 / 11.0 / 11.2 kW
- Cooling power consumption (Min./Rated/Max.): 0.68 / 3.95 / 4.93 kW
- Heating power consumption (Min./Rated/Max.): 0.53 / 3.15 / 3.85 kW
- EER (Energy Efficiency Ratio): 2.66
- SEER (Seasonal Energy Efficiency Ratio): 6.15
- COP (heating coefficient of performance): 3.49
- SCOP (Seasonal Coefficient of Performance for Heating): 4.12
- Energy class for cooling / heating (moderate zone): A++ / A+
- Cooling operating temperature: -15 ~ 52 °C
- Heating operating temperature: -15 ~ 24 °C
- Maximum number of indoor units: 4
- Refrigerant: R-32
- Power supply (Phase/Frequency/Voltage): 1~/50/220-240
Outdoor unit
- Compressor: Rotary
- Dimensions: 808 x 985 x 395 H x W x D (mm)
- Weight: 74 kg
- Pipe connections - liquid / gas phase: 6.35 / 9.52 mm (1/4" / 3/8")
- Cooling noise level (High/Normal/Low/Silent): 61 / - / - / - dB
- Heating noise level (High/Normal/Low/Silent): 61 / - / - / - dB
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
The AUX AM4-H36/4DR3 multi-split system is an air conditioning system comprising one outdoor unit and four AUX indoor units, which may be of different types. It offers flexible installation options and independent control of each indoor unit.
Key Features
- Capacity: 36,000 BTU
- Suitable for rooms up to: 60 sq. m
- Cooling capacity (Min./Rated/Max.): 2.5 / 10.5 / 11.0 kW
- Heating capacity (Min./Rated/Max.): 2.67 / 11.0 / 11.2 kW
- Cooling power consumption (Min./Nom./Max.): 0.68 / 3.95 / 4.93 kW
- Heating power consumption (Min./Rated/Max.): 0.53 / 3.15 / 3.85 kW
- EER (Energy Efficiency Ratio): 2.66
- SEER (Seasonal Energy Efficiency Ratio): 6.15
- COP (heating coefficient of performance): 3.49
- SCOP (Seasonal Coefficient of Performance for Heating): 4.12
- Energy class for cooling / heating (moderate zone): A++ / A+
- Cooling operating temperature: -15 ~ 52 °C
- Heating operating temperature: -15 ~ 24 °C
- Maximum number of indoor units: 4
- Refrigerant: R-32
- Power supply (Phase/Frequency/Voltage): 1~/50/220-240
Outdoor unit
- Compressor: Rotary
- Dimensions: 808 x 985 x 395 H x W x D (mm)
- Weight: 74 kg
- Pipe connections - liquid / gas phase: 6.35 / 9.52 mm (1/4" / 3/8")
- Cooling noise level (High/Normal/Low/Silent): 61 / - / - / - dB
- Heating noise level (High/Normal/Low/Silent): 61 / - / - / - dB
bit2550134
10 Items
Data sheet
- Съдържание пакет
- 1 x Външно тяло
- Тип продукт
- Мултисплит
- Препоръчителна зона на покритие
- 60 м²
- Място за монтиране
- Под
Стена - Основен капацитет
- 36000 BTU
- Минимална температура при охлаждане (-°C)
- -15
- Максимална температура при отопление (+°C)
- 24
- Минимална температура при отопление (°-C)
- -15
- Максимална температура при охлаждане (°+C)
- 52
- Инвертор
- Да
- Включен монтажен комплект
- Не
- Технология Wi-Fi
- N/A
- Тип хладилен агент
- R 32
- Номинален капацитет на охлаждане
- 10.5 kW
- Номинален капацитет на отопление
- 11 kW
- Номинална консумация (охлаждане)
- 3.95 kW
- Номинална консумация (отопление)
- 3.15 kW
- Енергийна ефективност при отопление
- A+
- Сезонен коефицент на затопляне SCOP
- 4.12
- Ниво на шум
- 61 dB
- Ниво на шум Външно устройство
- 61 dB
- Ширина Външно устройство
- 98.5 cm
- Височина Външно устройство
- 80.8 cm
- Гаранция
- 36 месеца
