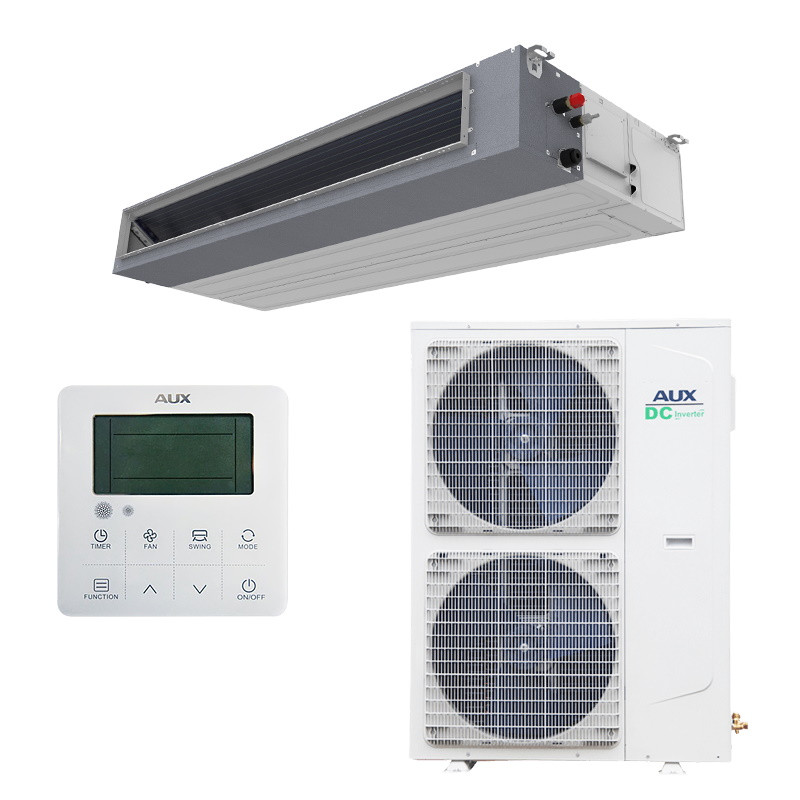

AUX AUMD-H60/SDR3HC + AL-H60/SDR3C2(U) Ducted Air Conditioner, 60,000 BTU, 100 m², R-32, White
€2,789.90
€2,327.90
Save €462.00
Tax included
- Capacity (BTU): 60,000
- Suitable for rooms up to: 100 sq. m
- Cooling capacity (Min./Nom./Max.): 4.76 / 16.0 / 17.5 kW
- Heating capacity (Min./Nom./Max.): 4.78 / 17.0 / 18.5 kW
- Cooling power consumption (Min./Nom./Max.): 1.71 / 5.6 / 6.85 kW
- Heating power consumption (Min./Rated/Max.): 1.71 / 4.8 / 7.0 kW
- EER (Energy Efficiency Ratio): 2.86
- COP (coefficient of performance): 3.54
- Cooling operating temperature: -15 ~ 52 °C
- Heating operating temperature: -15 ~ 24 °C
- Refrigerant: R-32
- Power supply (Phase/Frequency/Voltage): 3~/50/380-415
Indoor unit
- Dimensions: 700 x 1400 x 245 H x W x D (mm)
- Weight: 38 kg
- Cooling noise level (High/Normal/Low/Silent): 52 / 47 / 45 / - dB
- Heating noise level (High/Normal/Low/Silent): 52 / 47 / 45 / - dB
Outdoor unit
- Dimensions: 1325 x 940 x 370 H x W x D (mm)
- Weight: 85 kg
- Pipe connections - liquid / gas phase: 9.52 / 15.9 mm (3/8" / 5/8")
- Cooling noise level (High/Normal/Low/Silent): 60 / - / - / - dB
- Heating noise level (High/Normal/Low/Silent): 60 / - / - / - dB
Product customization
Don't forget to save your customization to be able to add to cart
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
High-capacity ducted air conditioner designed to maintain a comfortable indoor climate in large spaces. It features a wide operating range, stable performance under extreme outdoor conditions, and an energy-efficient heating and cooling mode. Suitable for concealed installation, allowing for discreet integration into the interior and centralized airflow distribution.
- Capacity (BTU): 60,000
- Suitable for rooms up to: 100 sq. m
- Cooling capacity (Min./Nom./Max.): 4.76 / 16.0 / 17.5 kW
- Heating capacity (Min./Nom./Max.): 4.78 / 17.0 / 18.5 kW
- Cooling power consumption (Min./Nom./Max.): 1.71 / 5.6 / 6.85 kW
- Heating power consumption (Min./Rated/Max.): 1.71 / 4.8 / 7.0 kW
- EER (Energy Efficiency Ratio): 2.86
- COP (coefficient of performance): 3.54
- Cooling operating temperature: -15 ~ 52 °C
- Heating operating temperature: -15 ~ 24 °C
- Refrigerant: R-32
- Power supply (Phase/Frequency/Voltage): 3~/50/380-415
Indoor unit
- Dimensions: 700 x 1400 x 245 H x W x D (mm)
- Weight: 38 kg
- Cooling noise level (High/Normal/Low/Silent): 52 / 47 / 45 / - dB
- Heating noise level (High/Normal/Low/Silent): 52 / 47 / 45 / - dB
Outdoor unit
- Dimensions: 1325 x 940 x 370 H x W x D (mm)
- Weight: 85 kg
- Pipe connections - liquid / gas phase: 9.52 / 15.9 mm (3/8" / 5/8")
- Cooling noise level (High/Normal/Low/Silent): 60 / - / - / - dB
- Heating noise level (High/Normal/Low/Silent): 60 / - / - / - dB
bit2540448
10 Items
Data sheet
- Тип компресор
- Инверторен
- Съдържание пакет
- 1 x Външно тяло
1 x Вътрешно тяло
1 x Дистанционно - Капацитет на затопляне
- 60000 BTU
- Препоръчителна зона на покритие
- 100 м²
- Употреба
- Индустриална
- Място за монтиране
- Стена
- Основен капацитет
- 60000 BTU
- Капацитет охлаждане
- 60000 BTU
- Минимална температура при охлаждане (-°C)
- -15
- Максимална температура при отопление (+°C)
- 24
- Минимална температура при отопление (°-C)
- -15
- Максимална температура при охлаждане (°+C)
- 52
- Брой скорости на вентилатора
- 4
- Инвертор
- Да
- Включен монтажен комплект
- Не
- Функции на климатика
- Охлаждане
Топлене - Технология Wi-Fi
- Не
- Тип хладилен агент
- R 32
- Захранващо напрежение
- 380-415 V
- Номинален капацитет на охлаждане
- 17.5 kW
- Номинален капацитет на отопление
- 18.5 kW
- Номинална консумация (охлаждане)
- 6.85 kW
- Номинална консумация (отопление)
- 7 kW
- Коефицент на охлаждане EER
- 2.86
- Коефицент на затопляне COP
- 3.54
- Цвят вътрешно тяло
- Бял
- Ниво на шум
- 52 dB
- Дължина Вътрешно устройство
- 24.5 cm
- Ширина Вътрешно устройство
- 140 cm
- Височина Вътрешно устройство
- 70 cm
- Тегло Вътрешно устройство
- 38 Kg
- Цвят външно тяло
- Бял
- Ниво на шум Външно устройство
- 60 dB
- Дължина Външно устройство
- 37 cm
- Ширина Външно устройство
- 94 cm
- Височина Външно устройство
- 132.5 cm
- Тегло Външно устройство
- 85 Kg
- Гаранция
- 36 месеца
