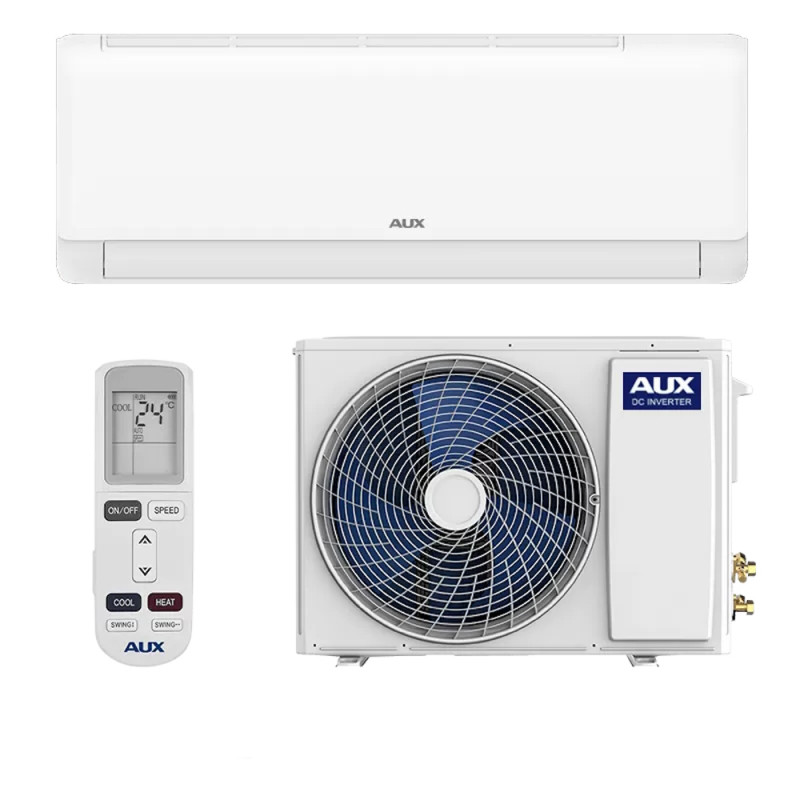

AUX Neo ASW-H12C5A4/QDR3DI-C0 Inverter Air Conditioner, A++, Up to 25 m², Wi-Fi Capable, Self-Cleaning, "Vitamin C" Filter, Activated Carbon Filter, White
€511.24
€444.77
Save €66.47
Tax included
Wi-Fi capability via an optional Wi-Fi controller and module
"Sleep" mode
- When this mode is activated, the air conditioner stops running for 10 hours, after which it will resume its previous mode.
Self-cleaning
- The air conditioner will automatically clean dust from the evaporator and dry it, improving efficiency.
Auto-restart
- If the power goes out, the air conditioner remembers the settings and resumes operation when power is restored.
Self-Diagnosis
- If the unit operates abnormally or a system component malfunctions, an error code will appear on the display to guide service technicians for easier and faster troubleshooting.
- The air conditioner’s design allows the pipes to be connected to either the left or right side of the indoor unit.
Vitamin C Filter
- Softens the skin and reduces stress; has therapeutic benefits.
Activated Carbon Filter
- Removes unpleasant odors and other airborne pollutants by neutralizing them through absorption.
Key Features:
- Suitable for rooms up to: 25 sq. m
- Refrigerant: R-32
Cooling:
- Cooling capacity: Min. 0.8 kW / Nom. 3.5 kW / Max. 4.1 kW
-Cooling power consumption: Min. 0.1 kW / Nom. 1.18 kW / Max. 1.6 kW
Heating:
- Heating output: Min. 1.0 kW / Nom. 3.8 kW / Max. 4.1 kW
- Heating power consumption: Min. 0.3 kW / Nom. 1.10 kW / Max. 1.6 kW
Efficiency:
- SEER (Seasonal Energy Efficiency Ratio): 6.1
- SCOP (Seasonal Coefficient of Performance for Heating): 4
- Annual energy consumption: Cooling 200 kWh / Heating 943 kWh
- Energy class: Cooling A++ / Heating A+ (moderate zone)
Operating ranges:
- Cooling operating temperature: 16 ~ 49 °C
- Heating operating temperature: -15 ~ 30 °C
Dimensions and weight:
- Indoor unit: 200 x 761 x 295 mm (H x W x D), Weight: 7.5 kg
- Outdoor unit: 530 x 705 x 279 mm (H x W x D), Weight: 22.5 kg
Noise level:
- Indoor unit (cooling/heating): High 43 dB / Nom. 34 / Low 30 / Silent 27
- Outdoor unit (cooling/heating): High 52 dB / Nom. - / Low - / Silent -
Pipe connections:
- Liquid phase: 6.35 mm (1/4")
- Gas phase: 9.52 mm (3/8")
Power supply:
- Phase/Frequency/Voltage: 1~ / 50 Hz / 220–240 V
- Color: White
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Wi-Fi capability via an optional Wi-Fi controller and module
"Sleep" mode
- When this mode is activated, the air conditioner stops running for 10 hours, after which it will resume its previous mode.
Self-cleaning
- The air conditioner will automatically clean dust from the evaporator and dry it, improving efficiency.
Auto-restart
- If the power goes out, the air conditioner remembers the settings and resumes operation when power is restored.
Self-Diagnosis
- If the unit operates abnormally or a system component malfunctions, an error code will appear on the display to guide service technicians for easier and faster troubleshooting.
Dual-sided installation
- The air conditioner’s design allows the pipes to be connected to either the left or right side of the indoor unit.
Vitamin C Filter
- Softens the skin and reduces stress; offers therapeutic benefits.
Activated carbon filter
- Removes unpleasant odors and other airborne pollutants by neutralizing them through absorption.
Key Features:
- Suitable for rooms up to: 25 sq. m
- Refrigerant: R-32
Cooling:
- Cooling capacity: Min. 0.8 kW / Nom. 3.5 kW / Max. 4.1 kW
- Cooling power consumption: Min. 0.1 kW / Nom. 1.18 kW / Max. 1.6 kW
Heating:
- Heating output: Min. 1.0 kW / Nom. 3.8 kW / Max. 4.1 kW
- Heating power consumption: Min. 0.3 kW / Nom. 1.10 kW / Max. 1.6 kW
Efficiency:
- SEER (Seasonal Energy Efficiency Ratio): 6.1
- SCOP (Seasonal Coefficient of Performance for Heating): 4
- Annual energy consumption: Cooling 200 kWh / Heating 943 kWh
- Energy class: Cooling A++ / Heating A+ (moderate zone)
Operating ranges:
- Cooling operating temperature: 16 ~ 49 °C
- Heating operating temperature: -15 ~ 30 °C
Dimensions and weight:
- Indoor unit: 200 x 761 x 295 mm (H x W x D), Weight: 7.5 kg
- Outdoor unit: 530 x 705 x 279 mm (H x W x D), Weight: 22.5 kg
Noise level:
- Indoor unit (cooling/heating): High 43 dB / Nom. 34 / Low 30 / Silent 27
- Outdoor unit (cooling/heating): High 52 dB / Nom. - / Low - / Silent -
Pipe connections:
- Liquid phase: 6.35 mm (1/4")
- Gas phase: 9.52 mm (3/8")
Power supply:
- Phase/Frequency/Voltage: 1~ / 50 Hz / 220–240 V
- Color: White
ASW-H12C5A4/QDR3DI-C0
5 Items
Data sheet
- Тип филтър
- Активен въглен
Витамин С
Филтър с витамин C - Съдържание пакет
- 1 x Външно тяло
1 x Вътрешно тяло
1 x Дистанционно - Тип продукт
- Стандартен
- Капацитет на затопляне
- 12000 BTU
- Препоръчителна зона на покритие
- 25 м²
- Употреба
- Домашна
- Място за монтиране
- Стена
- Основен капацитет
- 12000 BTU
- Минимална температура при охлаждане (-°C)
- 16
- Максимална температура при отопление (+°C)
- 30
- Минимална температура при отопление (°-C)
- -15
- Максимална температура при охлаждане (°+C)
- 49
- Включен монтажен комплект
- Не
- Специални функции
- Авторестарт
Самодиагностика
Самопочистване - Технология Wi-Fi
- Да
- Тип хладилен агент
- R-32
- Енергийна ефективност при охлаждане
- A++
- Енергийна ефективност при отопление
- A+
- Сезонен коефицент на охлаждане SEER
- 6.1
- Сезонен коефицент на затопляне SCOP
- 4
- Цвят вътрешно тяло
- Бял
- Ниво на шум
- 52 dB
- Дължина Вътрешно устройство
- 29.5 cm
- Ширина Вътрешно устройство
- 76.1 cm
- Височина Вътрешно устройство
- 20 cm
- Тегло Вътрешно устройство
- 22.5 Kg
- Цвят външно тяло
- Бял
- Ширина Външно устройство
- 70.5 cm
- Височина Външно устройство
- 53 cm
- Тегло Външно устройство
- 22.5 Kg
- Гаранция
- 36 месеца
