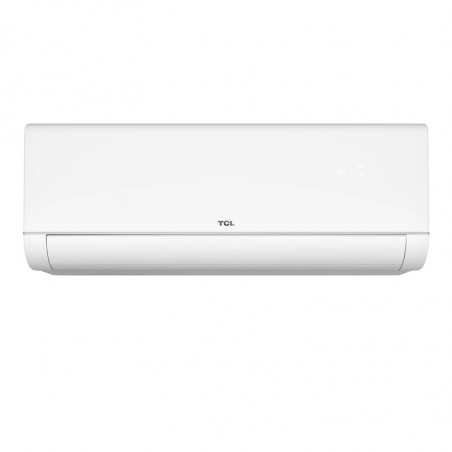

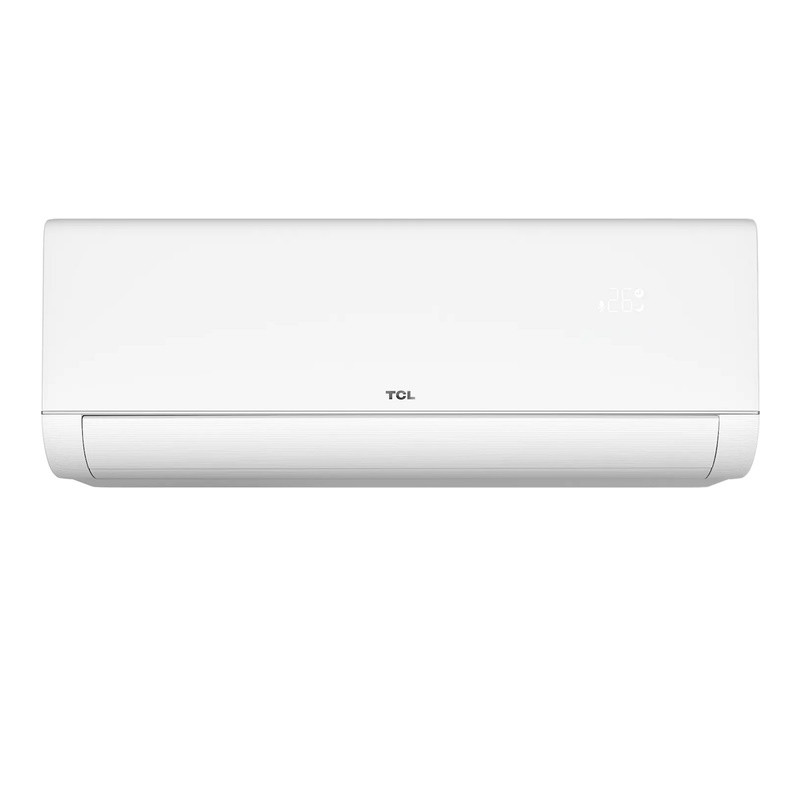

A powerful and intelligent air conditioner with AI inverter technology, combining high energy efficiency with a range of advanced features for maximum comfort. It features Smart Gentle Wind technology with 1,372 micro-vents for a gentle airflow, Smart Vector Air Flow with 72 possible settings, and the Coanda effect for even air distribution. It provides rapid cooling and heating with the Super Turbo Start function and operates in extreme outdoor temperatures—from -30°C to +53°C.
It features a large 108 mm diameter fan and dual louvers for better circulation. The model includes UVC sterilization and a BIG Care+ ionizer, ensuring effective air purification. It features self-cleaning for both the indoor and outdoor units, an I Feel function for more precise temperature control, and an intelligent AI inverter algorithm. It is controlled via built-in Wi-Fi and the TCL Home app.
- Cooling capacity: 7.03 kW
- Heating capacity: 7.12 kW (1.85 - 7.96 kW)
- Power consumption in cooling mode: 1.795 kW (0.42 - 3.0 kW)
- Power consumption in heating mode: 1.9 kW (0.41 - 2.8 kW)
- Cooling capacity: 24,000 BTU/h
- Heating capacity: 24,500 BTU/h
- Recommended area: up to 70 m²
- Energy class (cooling): A+++
- Refrigerant: R32
- Operating temperature range: -30°C to +53°C
- Noise level (indoor unit): 26 / 30 / 37 / 44 / 50 dB
- Noise level (outdoor unit): 58 dB
- Dimensions (HxWxD) indoor unit: 33.3 x 109.6 x 22.2 cm
- Dimensions (HxWxD) outdoor unit: 80.3 x 97.8 x 42.1 cm
- Indoor unit weight: 14.2 kg
- Weight of outdoor unit: 45 kg
- Maximum pipe run length: 25 m
- Maximum height difference: 10 m
- Power supply: 220-240V / 50Hz / 1Ph
- System type: Split
- Installation: Wall-mounted
- Color: White
Key features:
- Smart Gentle Wind - 1,372 micro-holes for a gentle airflow
- Smart Vector Air Flow - 72 airflow settings
- Coanda effect - expanded and extended airflow
- Large fan (108 mm) for powerful circulation
- 7 fan speeds
- BIG Care+ with UVC sterilization - eliminates 98.66% of bacteria
- Dual louvers for wider coverage
- Self-cleaning of the indoor and outdoor units
- Maintains a temperature of +8°C when away
- iFeel function - precise temperature measurement
- Reverse Clean - self-cleaning of the outdoor unit
- Powerful cooling at temperatures up to 60°C
- Effective heating at -30°C
- AI inverter algorithm - fast and stable control
- Super Turbo Start - fast cooling/heating
- IoT Wi-Fi control
- Timer
- LED display
- Night mode
- Hotel mode
- Hydrophilic coatings
- Corrosion protection
- High-density filter - up to 2.5 times more effective
- Settings memory
- Voltage protection
- Light-sensitive sleep mode
- Economy mode
- USB Wi-Fi module
- Backlit remote control
- 3-Easy technology for easy installation and maintenance
- Unique indoor unit design with Titan Gold finish
- Dual drainage
- Emergency button
- Louver adjustment
