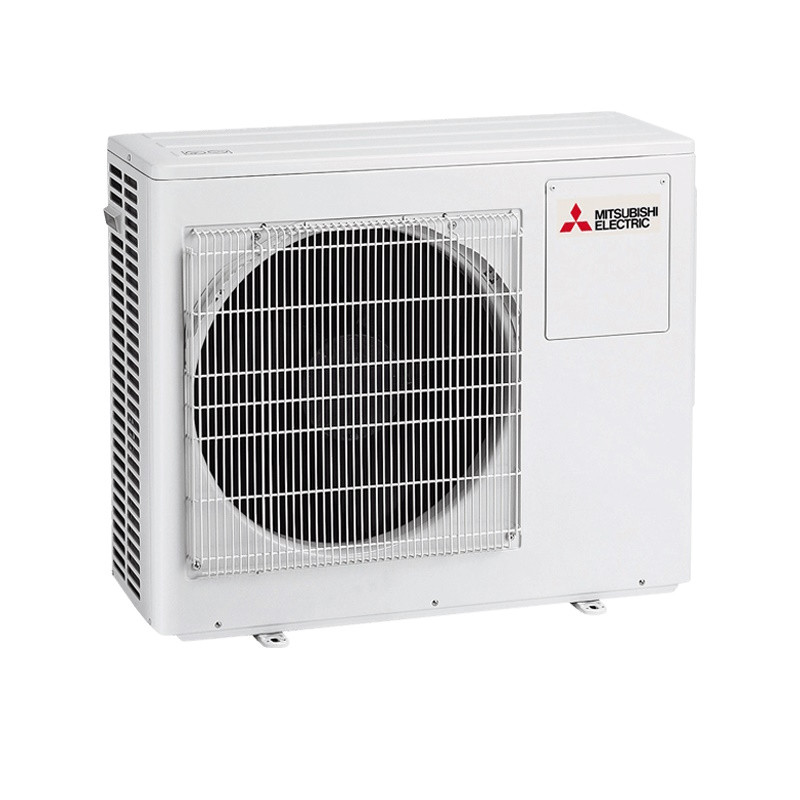

Mitsubishi Electric MXZ-3F68VF Multi-Split System Outdoor Unit, 23,000 BTU, 55 m², A++/A+, R-32, White
€2,479.90
€2,157.90
Save €322.00
Tax included
The MXZ-3F68VF multi-split air conditioning system is compatible with up to three Mitsubishi Electric indoor units, which can be of different types. It offers high energy efficiency and allows for flexible installation and independent control of each indoor unit.
Key Features
- Capacity: 23,000 BTU
- Suitable for rooms up to: 55 sq. m
- Cooling capacity (Min./Rated/Max.): 2.9 / 6.8 / 8.4 kW
- Heating capacity (Min./Rated/Max.): 2.6 / 8.6 / 10.6 kW
- Cooling power consumption (Min./Rated/Max.): - / 1.84 / - kW
- Heating power consumption (Min./Nom./Max.): - / 1.91 / - kW
- EER (Energy Efficiency Ratio): 3.7
- SEER (seasonal energy efficiency ratio): 7.96
- COP (heating coefficient of performance): 4.5
- SCOP (Seasonal Coefficient of Performance - Heating): 4.12
- Annual energy consumption (Cooling / Heating): 299 / 2312 kWh
- Energy class for cooling / heating (moderate zone): A++ / A+
- Cooling operating temperature: -10 ~ 46 °C
- Heating operating temperature: -15 ~ 24 °C
- Maximum number of indoor units: 3
- Refrigerant: R-32
- Power supply (Phase/Frequency/Voltage): 1~/50/220-240
Outdoor unit
- Dimensions: 710 x 840 x 330 H x W x D (mm)
- Weight: 58 kg
- Cooling noise level (High/Normal/Low/Silent): 48 / - / - / - dB
- Heating noise level (High/Normal/Low/Silent): 53 / - / - / - dB
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
The MXZ-3F68VF multi-split air conditioning system is compatible with up to three Mitsubishi Electric indoor units, which can be of different types. It offers high energy efficiency and allows for flexible installation and independent control of each indoor unit.
Key Features
- Capacity: 23,000 BTU
- Suitable for rooms up to: 55 sq. m
- Cooling capacity (Min./Rated/Max.): 2.9 / 6.8 / 8.4 kW
- Heating capacity (Min./Rated/Max.): 2.6 / 8.6 / 10.6 kW
- Cooling power consumption (Min./Rated/Max.): - / 1.84 / - kW
- Heating power consumption (Min./Nom./Max.): - / 1.91 / - kW
- EER (Energy Efficiency Ratio): 3.7
- SEER (seasonal energy efficiency ratio): 7.96
- COP (heating coefficient of performance): 4.5
- SCOP (Seasonal Coefficient of Performance - Heating): 4.12
- Annual energy consumption (Cooling / Heating): 299 / 2312 kWh
- Energy class for cooling / heating (moderate zone): A++ / A+
- Cooling operating temperature: -10 ~ 46 °C
- Heating operating temperature: -15 ~ 24 °C
- Maximum number of indoor units: 3
- Refrigerant: R-32
- Power supply (Phase/Frequency/Voltage): 1~/50/220-240
Outdoor unit
- Dimensions: 710 x 840 x 330 H x W x D (mm)
- Weight: 58 kg
- Cooling noise level (High/Normal/Low/Silent): 48 / - / - / - dB
- Heating noise level (High/Normal/Low/Silent): 53 / - / - / - dB
bit2550043
10 Items
Data sheet
- Тип продукт
- Мултисплит
- Препоръчителна зона на покритие
- 55 м²
- Място за монтиране
- Стена
- Минимална температура при охлаждане (-°C)
- -10
- Максимална температура при отопление (+°C)
- 24
- Минимална температура при отопление (°-C)
- -15
- Максимална температура при охлаждане (°+C)
- 46
- Инвертор
- Да
- Включен монтажен комплект
- Да
- Функции на климатика
- Вентилация
Охлаждане
Топлене - Технология Wi-Fi
- Не
- Тип хладилен агент
- R 32
- Номинален капацитет на охлаждане
- 6.8 kW
- Номинален капацитет на отопление
- 8.6 kW
- Номинална консумация (охлаждане)
- 1.84 kW
- Номинална консумация (отопление)
- 1.91 kW
- Енергийна ефективност при охлаждане
- A++
- Енергийна ефективност при отопление
- A+
- Сезонен коефицент на охлаждане SEER
- 7.96
- Сезонен коефицент на затопляне SCOP
- 4.12
- Коефицент на охлаждане EER
- 3.7
- Коефицент на затопляне COP
- 4.5
- Цвят вътрешно тяло
- Бял
- Ниво на шум
- 53 dB
- Дължина Вътрешно устройство
- 33 cm
- Ширина Вътрешно устройство
- 84 cm
- Височина Вътрешно устройство
- 71 cm
- Тегло Вътрешно устройство
- 58 Kg
- Цвят външно тяло
- Бял
- Ниво на шум Външно устройство
- 53 dB
- Дължина Външно устройство
- 33 cm
- Ширина Външно устройство
- 84 cm
- Височина Външно устройство
- 71 cm
- Тегло Външно устройство
- 58 Kg
- Гаранция
- 36 месеца
