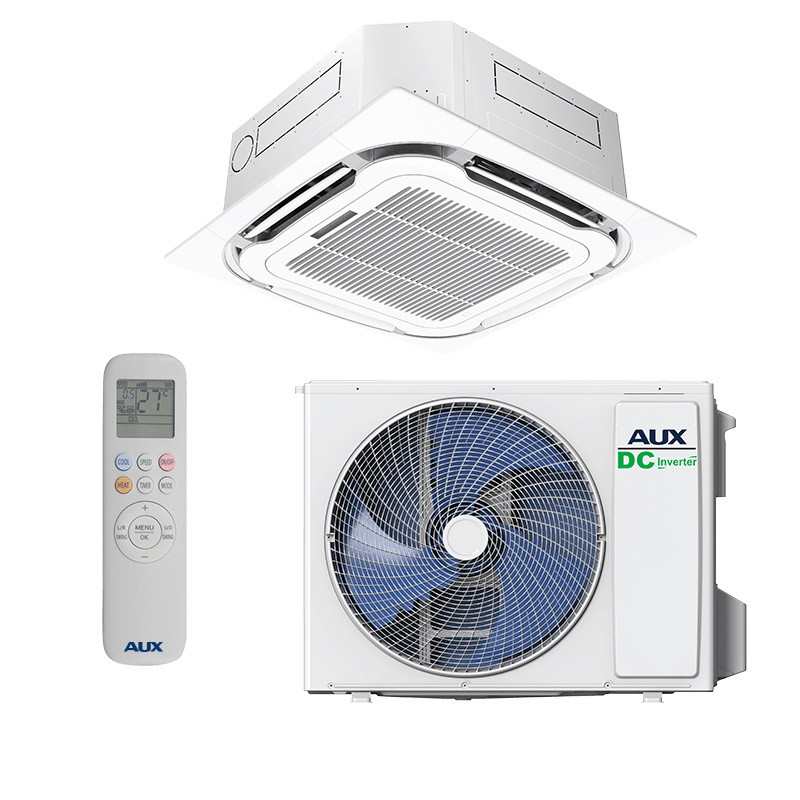

AUX AUCA-H24/4DR3HYAA + AL-H24/NDR3HB2(U) Cassette Air Conditioner, 24,000 BTU, 49 m², R-32, White
€1,609.90
€1,357.90
Save €252.00
Tax included
- Capacity (BTU): 24,000
- Suitable for rooms up to: 49 sq. m
- Cooling capacity (Min./Rated/Max.): 2.16 / 7.0 / 8.2 kW
- Heating capacity (Min./Rated/Max.): 1.98 / 8.0 / 9.3 kW
- Cooling power consumption (Min./Rated/Max.): 0.67 / 2.1 / 3.3 kW
- Heating power consumption (Min./Nom./Max.): 0.65 / 2.13 / 3.3 kW
- EER (Energy Efficiency Ratio): 3.35
- SEER (Seasonal Energy Efficiency Ratio): 6.1
- COP (Heating Coefficient of Performance): 3.71
- SCOP (Seasonal Coefficient of Performance for Heating): 4
- Cooling operating temperature: -15 ~ 52 °C
- Heating operating temperature: -15 ~ 24 °C
- Refrigerant: R-32
- Power supply (Phase/Frequency/Voltage): 1~/50/220-240
Indoor unit
- Dimensions: 246 x 840 x 840 H x W x D (mm)
- Weight: 26 kg
- Cooling noise level (High/Normal/Low/Silent): 46 / 45 / 43 / - dB
- Heating noise level (High/Normal/Low/Silent): 46 / 45 / 43 / - dB
Outdoor unit
- Dimensions: 700 x 900 x 350 H x W x D (mm)
- Weight: 43 kg
- Pipe connections - liquid / gas phase: 9.52 / 15.9 mm (3/8" / 5/8")
- Cooling noise level (High/Normal/Low/Silent): 58 / - / - / - dB
- Heating noise level (High/Normal/Low/Silent): 58 / - / - / - dB
Product customization
Don't forget to save your customization to be able to add to cart
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Inverter cassette air conditioner with a capacity of 24,000 BTU, designed for efficient cooling and heating of rooms up to 49 square meters. Suitable for installation in a suspended ceiling, ensuring even airflow distribution and discreet installation. It features high seasonal performance coefficients, low noise levels, and operation under extreme temperature conditions. It uses the modern R-32 refrigerant for a lower environmental impact.
- Capacity (BTU): 24,000
- Suitable for rooms up to: 49 sq. m
- Cooling capacity (Min./Nom./Max.): 2.16 / 7.0 / 8.2 kW
- Heating capacity (Min./Nom./Max.): 1.98 / 8.0 / 9.3 kW
- Cooling power consumption (Min./Rated/Max.): 0.67 / 2.1 / 3.3 kW
- Heating power consumption (Min./Nom./Max.): 0.65 / 2.13 / 3.3 kW
- EER (Energy Efficiency Ratio): 3.35
- SEER (Seasonal Energy Efficiency Ratio): 6.1
- COP (Heating Coefficient of Performance): 3.71
- SCOP (Seasonal Coefficient of Performance for Heating): 4
- Cooling operating temperature: -15 ~ 52 °C
- Heating operating temperature: -15 ~ 24 °C
- Refrigerant: R-32
- Power supply (Phase/Frequency/Voltage): 1~/50/220-240
Indoor unit
- Dimensions: 246 x 840 x 840 H x W x D (mm)
- Weight: 26 kg
- Cooling noise level (High/Normal/Low/Silent): 46 / 45 / 43 / - dB
- Heating noise level (High/Normal/Low/Silent): 46 / 45 / 43 / - dB
Outdoor unit
- Dimensions: 700 x 900 x 350 H x W x D (mm)
- Weight: 43 kg
- Pipe connections - liquid / gas phase: 9.52 / 15.9 mm (3/8" / 5/8")
- Cooling noise level (High/Normal/Low/Silent): 58 / - / - / - dB
- Heating noise level (High/Normal/Low/Silent): 58 / - / - / - dB
bit2540443
10 Items
Data sheet
- Тип компресор
- Инверторен
- Съдържание пакет
- 1 x Външно тяло
1 x Вътрешно тяло
1 x Дистанционно - Капацитет на затопляне
- 24000 BTU
- Препоръчителна зона на покритие
- 49 м²
- Употреба
- Домашна
Индустриална - Място за монтиране
- Таван
- Основен капацитет
- 24000 BTU
- Капацитет охлаждане
- 24000 BTU
- Минимална температура при охлаждане (-°C)
- -15
- Максимална температура при отопление (+°C)
- 24
- Минимална температура при отопление (°-C)
- -15
- Максимална температура при охлаждане (°+C)
- 52
- Брой скорости на вентилатора
- 4
- Инвертор
- Да
- Включен монтажен комплект
- Не
- Технология Wi-Fi
- Не
- Тип хладилен агент
- R 32
- Захранващо напрежение
- 240 V
- Номинален капацитет на охлаждане
- 8.2 kW
- Номинален капацитет на отопление
- 9.3 kW
- Номинална консумация (охлаждане)
- 3.3 kW
- Номинална консумация (отопление)
- 3.3 kW
- Сезонен коефицент на охлаждане SEER
- 6.1
- Сезонен коефицент на затопляне SCOP
- 4
- Коефицент на охлаждане EER
- 3.35
- Коефицент на затопляне COP
- 3.71
- Цвят вътрешно тяло
- Бял
- Ниво на шум
- 46 dB
- Дължина Вътрешно устройство
- 84 cm
- Ширина Вътрешно устройство
- 84 cm
- Височина Вътрешно устройство
- 24.6 cm
- Тегло Вътрешно устройство
- 26 Kg
- Цвят външно тяло
- Бял
- Ниво на шум Външно устройство
- 58 dB
- Дължина Външно устройство
- 35 cm
- Ширина Външно устройство
- 90 cm
- Височина Външно устройство
- 70 cm
- Тегло Външно устройство
- 43 Kg
- Гаранция
- 36 месеца
