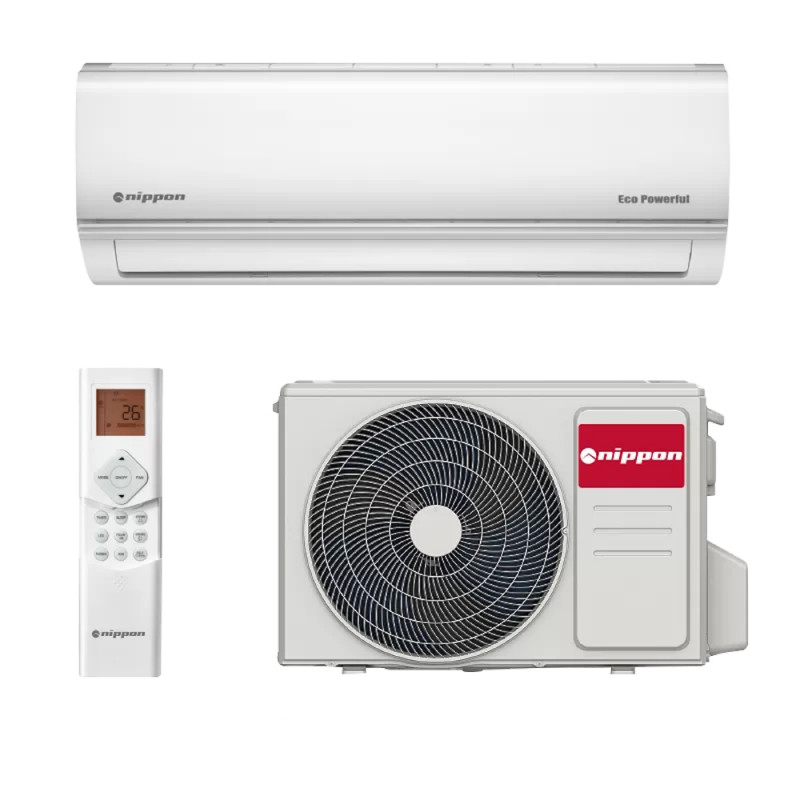

Nippon KFR 12DCA ECO POWERFUL Inverter Air Conditioner, A++, Up to 23 m², WiFi, Smart Defrost, Self-Diagnosis, Sleep Mode, Timer, White

Environmental Stewardship

Nippon KFR ECO POWERFUL inverter air conditioners use the latest R32 refrigerant and meet F-GAS requirements for reducing global warming. R32 refrigerant reduces the harmful impact on the environment and ensures higher efficiency for every air conditioner in the series.

High efficiency

Nippon inverter air conditioners are designed to meet the latest European requirements for energy efficiency and eco-design. Every air conditioner in this series features a high seasonal energy efficiency ratio in both cooling and heating modes.

Intelligent control

The compressor in Nippon inverter air conditioners is controlled by the latest generation of technology—a 180° sinusoidal pulse—which offers numerous advantages, such as more efficient, reliable, and quiet operation compared to a 120° square pulse.

Comfort even in the farthest corner of the room

With the optimized fan in the indoor unit of all air conditioners in this series, the airflow reaches further and ensures comfort in every corner of the room.

Heating at low outdoor temperatures

Nippon’s range of inverter air conditioners will keep you comfortable during cold winter days. Their compressors are designed to start even at low outdoor temperatures to provide reliable heating for your home.

Total control

The Nippon KFR DCA ECO POWERFUL inverter air conditioner can be controlled remotely via the built-in Wi-Fi controller and the app, available for Apple and Android platforms.

Wi-Fi module included in the package

Mirror installation option
- The innovative high-tech design allows the pipes and drain hose to be installed on either the left or right side of the indoor unit.

"Smart Defrost" mode
- When the outdoor heat exchanger freezes while in heating mode at low ambient temperatures, the Nippon air conditioner will switch to “Smart Defrost” mode.

"Self-Diagnosis" Function
- The air conditioner features a “Self-Diagnosis” function that monitors for unusual operations or errors, and when such issues occur, the system automatically shuts down. At the same time, the error code will be displayed on the indoor unit’s screen.

“Sleep” Mode
- The air conditioner will automatically increase (in cooling mode) or decrease (in heating mode) the temperature by 1 degree every hour for the first two hours and will automatically shut off after 5 hours. “Sleep” mode helps you maintain the most comfortable temperature for you and reduce energy consumption.

Timer
- Nippon air conditioners can be set to turn on or off automatically at any time of the day or night.

Key Features:
- Suitable for rooms up to: 23 sq. m
- Refrigerant: R-32

Cooling:
- Cooling capacity: Min. 1.11 kW / Nom. 3.51 kW / Max. 4.16 kW
- Cooling power consumption: Min. 0.13 kW / Nom. 1.24 kW / Max. 1.58 kW

Heating:
- Heating output: Min. 1.08 kW / Nom. 3.8 kW / Max. 4.22 kW
- Heating power consumption: Min. 0.1 kW / Nom. 0.96 kW / Max. 1.58 kW

Cooling capacity: 12,000 BTU/h
Heating capacity: 13,000 BTU/h

Efficiency:
- SEER (Seasonal Energy Efficiency Ratio): 6.1
- SCOP (Seasonal Coefficient of Performance for Heating): 4
- Energy class: Cooling A++ / Heating A+ (moderate zone)

Operating ranges:
- Cooling operating temperature: 15 ~ 50 °C
- Heating operating temperature: -15 ~ 30 °C

Dimensions and weight:
- Indoor unit: 285 x 805 x 194 mm (H x W x D), Weight: 7.5 kg
- Outdoor unit: 495 x 720 x 270 mm (H x W x D), Weight: 23.2 kg

Noise level:
- Indoor unit (cooling/heating): High 40 dB / Nom. 34 / Low 26 / Silent 22
- Outdoor unit (cooling/heating): High 63 dB / Nom. - / Low - / Silent -

Pipe connections:
- Liquid phase: 6.35 mm (1/4")
- Gas phase: 9.52 mm (3/8")

Power supply:
- Phase/Frequency/Voltage: 1~/50 Hz/220–240 V

- Warranty: 24 months
- Color: White
